Blue Seal E514D 4 Element Cooktop

2,299.99 2,828.99

Add to Quote


The Blue Seal E514D 4 Element Cooktop is part of the Evolution range. It’s sleek design looks good in any commercial kitchen whilst it’s robust build will cope with the demands of a hustling bustling kitchen.

Blue Seal has completely redesigned their range with the Evolution series and the result is a more functional range of equipment that suite up with the 812mm depth giving plenty of work space even in the kitchens tight on space.

Product Features:
• Heavy-duty construction.
• 2.4kW open radiant elements.
• Rear rollers (excluding E514DB).
• Easy clean, easy service, fully modular.
• Large easy use control knob – heat resistant reinforced.
• Easy view control settings on knob.
• Radiant elements with energy regulator controls.
• Power indicator lights for each element control.

The Blue Seal E514D is available as a bench model or with a leg stand or cabinet base. Hot plate elements are also available at an additional cost replacing the open radiant elements.

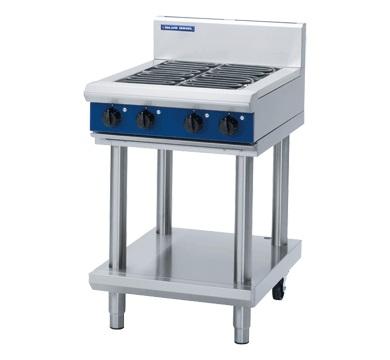

Picture is of E514DLS.

E514D-B – W600 x D812 x H315/485 inc splashback.
E514D-CB/D-LS – W600 x D812 x H915/1085 inc splashback.

Looking for gas units click here: Boiling Tops / Hob Units – Gas supply – Caterkwik Ireland

Located in Northern Ireland then check out our UK page

Additional information

Dimensions (L x W x H) 600 × 812 × 315 mm


There are no reviews yet.

Be the first to review “Blue Seal E514D 4 Element Cooktop”



9.6kW, 400 – 415V, 20A/phase, 50/60hz, 2P+N+E


Requires hard-wiring. To be installed by a qualified technician.

Product Downloads

E514D Specification Sheet

E514D User Manual
